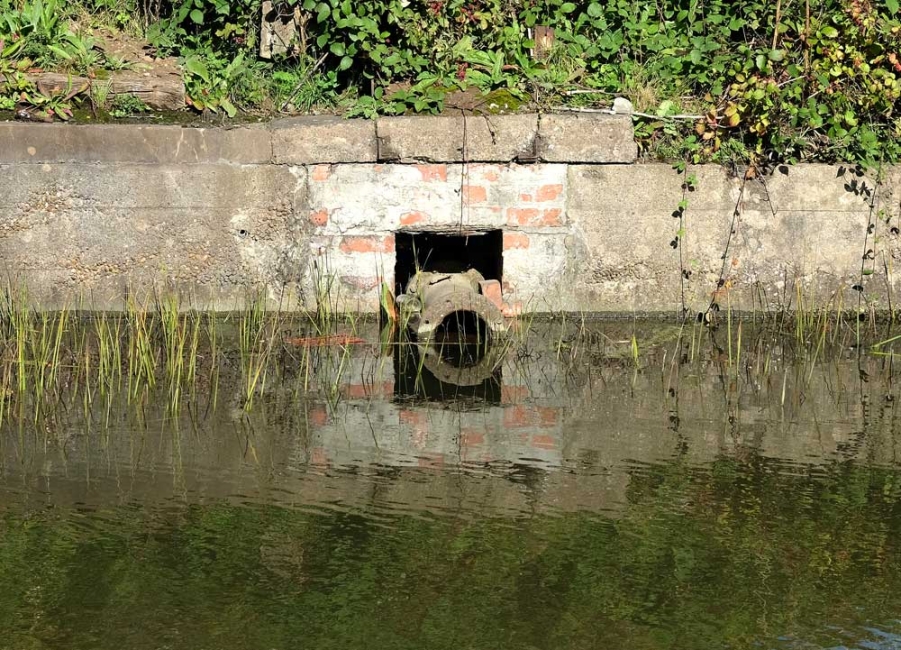

A well managed stormwater program depends on accurate and complete information about every outfall in a community. Outfalls are the final discharge points where stormwater leaves the municipal system and enters a stream, lake, wetland, or other receiving water. Because these locations represent the last opportunity to detect pollution, understand watershed conditions, and comply with federal requirements, municipalities must document them carefully. The data required for each outfall serves both environmental protection and regulatory accountability, and it forms the foundation of a responsible Municipal Separate Storm Sewer System (MS4) program.
Crews must begin by recording each outfall’s precise location. Latitude and longitude allow a department, its consultants, and state reviewers to verify the site and revisit it consistently during inspections. Many municipalities pair the GPS coordinates with the associated road name, nearby structures, or descriptive markers so inspectors can find the location even under snow, vegetation, or high water. This geographic information is essential because an outfall is meaningless to an environmental agency if it cannot be located accurately on a map.
Beyond coordinates, inspectors must document the outfall’s physical construction. Material type such as concrete, metal, or plastic, pipe diameter, shape, and structural condition all influence how the outfall performs and how vulnerable it may be to erosion or collapse. Recording evidence of scour, sediment buildup, cracked headwalls, or undermined banks helps a department track long term maintenance needs and identify potential safety or flooding concerns. These details allow agencies to assess whether stormwater is being conveyed safely and discharged in a manner that protects nearby habitats.
Flow characteristics are another critical category of required data. Inspectors must note whether water is flowing, trickling, or stagnant, and whether any odors, discoloration, suds, or sheen are present. These observations help determine if illicit discharges may be reaching the receiving water. A flowing outfall during dry weather is often the strongest indicator that something upstream is not operating properly, such as a cross connection, a failed septic system, or a commercial facility discharging improperly. For this reason, dry weather inspection data is particularly valuable, since it helps a municipality demonstrate that it is actively locating and eliminating sources of pollution.
Municipalities must also record information about the receiving water itself. Inspectors note the name of the stream or wetland, its general condition at the discharge point, and any obvious signs of impact such as erosion, algae, debris accumulation, or habitat disturbance. This information links the outfall directly to the watershed it influences, which is important for tracking water quality impairments and demonstrating progress under watershed restoration plans.
In addition to physical and environmental details, the inspection date and inspector name must be recorded. This establishes a clear compliance history and confirms that the community is meeting its inspection frequency requirements. Many municipalities include photographs with each inspection because photos provide an objective record that can be compared over time to detect changes such as worsening erosion, new pipes, or emerging pollution issues.
All of this information is required primarily because of federal and state stormwater regulations. In the United States, the Environmental Protection Agency oversees the Municipal Separate Storm Sewer System program, commonly known as MS4. Under the Clean Water Act, MS4 communities must map all their outfalls, inspect them regularly, investigate potential illicit discharges, and keep detailed records of their findings. State environmental agencies administer these requirements through permits that spell out exactly what information must be collected and how often inspections must occur. Some states add additional data requirements that reflect local watershed conditions or regional priorities, so municipalities must follow both federal expectations and state specific mandates.
When this information is collected consistently, it does more than satisfy regulatory obligations. It gives municipalities a clear understanding of how their systems interact with local waterbodies, helps prevent pollution before it travels downstream, and supports better planning for maintenance, restoration, and capital improvements. In other words, thorough outfall data ensures compliance, but it also strengthens environmental stewardship by making a community’s stormwater system more transparent and manageable.
